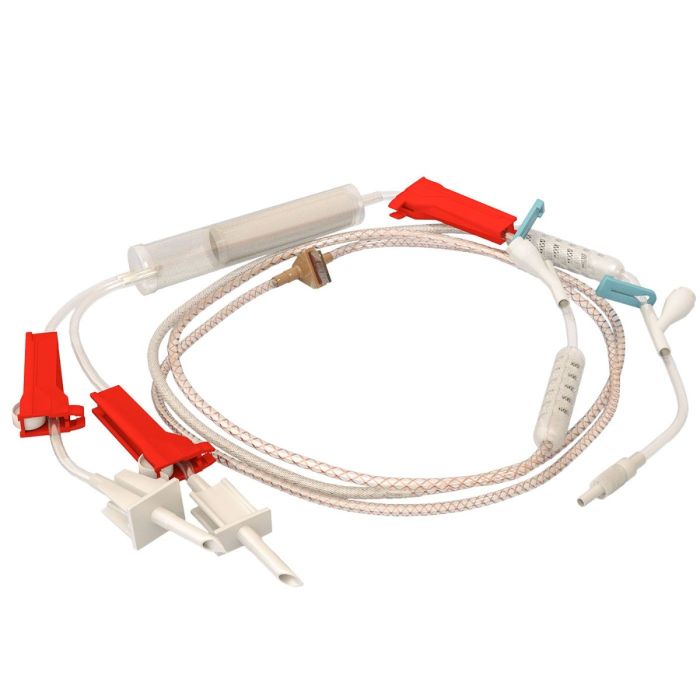

THERMAL TRANSFUSION SET - (BLOOD) TTS-B - PACK OF 2

The Quantum Thermal Transfusion Set- Blood from LifeWarmer is the revolutionary IV tubing set that allows for safe, rapid warming of blood, blood products, or IV fluids without adding hardly any additional steps to the normal IV setup process. Modeled after standard blood infusion tubing, the familiar configuration allows for ease of use. The sophisticated intelligence and proprietary warming technology are integrated into the tubing system for simplicity and to reduce additional equipment and procedural steps. Roughly the same size and weight as standard blood tubing, there is almost no additional equipment burden.

The Quantum IV administration tubing is double-extruded to yield a configuration that has both an inner tubing layer and an outer tubing layer. A conductive heating element is between the two layers but does not come in contact with the fluid path or disrupt the laminar flow. The outer tubing layer acts as an insulator while the inner tubing layer transfers the heat from the heating element to the fluid path. Thermistors located in the tubing continually measure temperature and provide that input to the Quantum Controller. The monitoring and independent application of energy (heat) along the fluid path allows the Quantum to respond to varying temperature inputs from the fluid source to near the point of patient entry to ensure fluid temperature is the right temperature at delivery.

The Quantum Life Warmer, fully charged, is able to warm and maintain up to 2 units ( 900mL +/- 100mL) of cold (4ºC) blood products or IV solutions to a pre-set temperature of 100.4°F (38°+/- 2°C) at a flow rate of 100 mL/min (depending on the ambient temperature). Or, approximately 1700 mL of 20ºC IV solution to a set point of 38ºC +/- 2ºC at a flow rate of 200 mL/min. Effective warming flow rates range from 2 to 200 mL/minute depending on input fluid temperature and ambient conditions.

SPECS
Compatible with blood, blood products, and standard IV fluids
Similar size and weight to traditional IV tubing
Intelligent sensing and heating elements from LifeWarmer integrated into the walls of the tubing set
No disruption to the fluid path or laminar flow of the fluid
Easy bi-directional connection to the Quantum Life Warmer Controller
Dual Spike with Vent
200 micron filtered drip chamber
Luer-activated injection sites (2)
Male Luer lock adapter
Tubing length: 80 in.
Priming Volume: 22mL
Single Use Only, Supplied sterile via Ethylene Oxide
Drip rate: 20 gtts/ml
Dimensions:
TTS-B package (each): 6.5 in. x 11 in.
Tubing Length: 80 in.
TTS-B Weight (each): 2.6 oz
Packaged Weight (2 TTS-B & box): 11 oz
Caution: For Administration of blood, blood components, or solutions with the Quantum Blood and IV Fluid Warming System. Fluid path and areas under protective end caps are sterile. DO NOT place on sterile field. Do not use if end caps are not in place. Replace tubing per CDC guidelines and/or institutional protocols.
