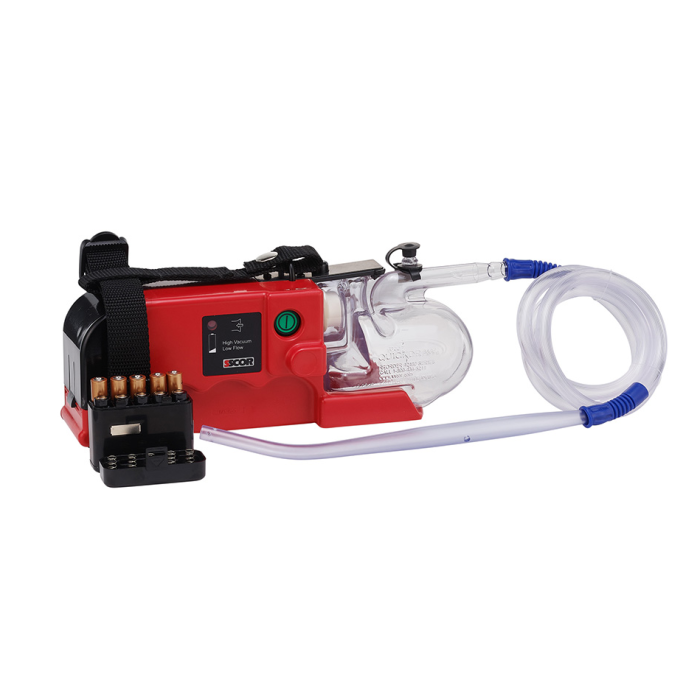

SSCOR Quickdraw Portable Suction Unit Alkaline

SSCOR QUICKDRAW® - Alkaline Battery Powered Suction Unit

Powerful Suction designed to put in your "first in kit"

The SSCOR Quickdraw is designed for EMS and related industries. Because of its size, it will fit conveniently into an airway or fist in bag. Easily used for search and rescue, bicycle medics, police and more.

Because it runs on Alkaline batteries it never has to be on charge. Take it anywhere you need suction.

 FEATURES:

Lightweight, portable suction device
Fits in airway or first in bag
Powered by Alkaline Batteries that do not require a charger
Use off-the-shelf batteries to power the Quickdraw
UCLA Center For Pre-hospital Care Suction Study detailing the suction efficiency of the Quickdraw
Vacuum setting >500mmHg or approximately 80 - 100mmhg
Clearly labeled battery condition indicator
1 year warranty
IPX4 rating for protection against ingress of fluids
Use as a handheld or traditional suction device with tubing, tips and catheters

 SPECIFICATIONS:

Performance:  Maximum negative pressure >500mmHg; Low negative pressure setting approximately 80 - 100mmHg
Dimensions:  10.5” L x 4.5” H x 4.35” W  -  27cm L x 11cm H x 11cm W
Weight:  2.6 lbs or 1.18 kg
Battery:  Alkaline Battery Pack 180 minutes run time at full capacity  -  Alkaline Battery Holder (10x’AAA’) 60-100 minutes run time with fresh ‘AAA’ alkaline batteries
Collection Canister:  300 cc/ml capacity: 99.98% bacterial effective filter

 STANDARD ITEMS INCLUDED WITH PRODUCT:

Alkaline Battery Pack, one ‘AAA’ battery holder, disposable one time use canister with 1m patient tube, Hi-D® suction tip and Quickstart Guide.

 CONFORMS TO:

ETL listed, conforms to ISO 10079-1 UL 60601-1, IEC 60601-1, EN 60601-1-2, CSA C22.2, No. 601.1 - M90, IPX4 per IEC 60529.

 REFERENCE / MODEL NUMBER:

2403
