Resistance Bridge
SKU
1009885
Manufacturer
3B Scientific
Unit of Measure
Each
UPC
$273.13
Description
| Product Information: .. |

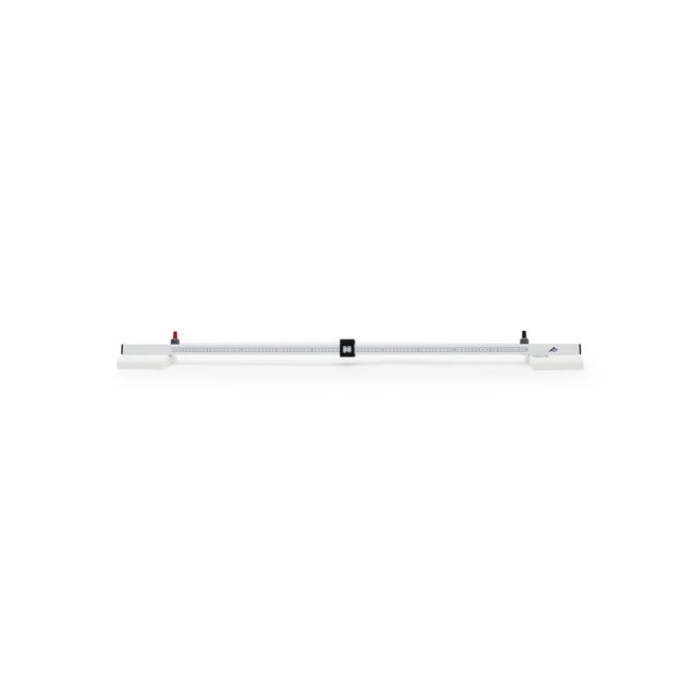

Resistance Bridge used to measure resistances in bridge circuits and investigate voltage drops across wires. The device is only suitable for low voltages. It consists of a rail with a scale mounted at two points and a resistance wire stretched between two connecting sockets. A sliding contact on the resistance wire is used to set the resistance of the resultant two wire sections. A Wheatstone bridge circuit is configured to determine unknown resistances.
| Specifications: .. |
| Dimensions: | 1300 mm x 100 mm x 90 mm approx. |
| Rail: | 30 mm x 30 mm approx. |
| Scale: | 0 – 1000 mm |
| Scale divisions: | mm |
| Resistance wire: | 1 m, 0.5 mm dia. |
| Material: | NiCr |
| Resistance: | 5.3 Ω |
| Connection: | 4 mm safety jacks |
| Maximum permissible voltage: | 8 V |
| Maximum permissible current: | 1.5 A |
