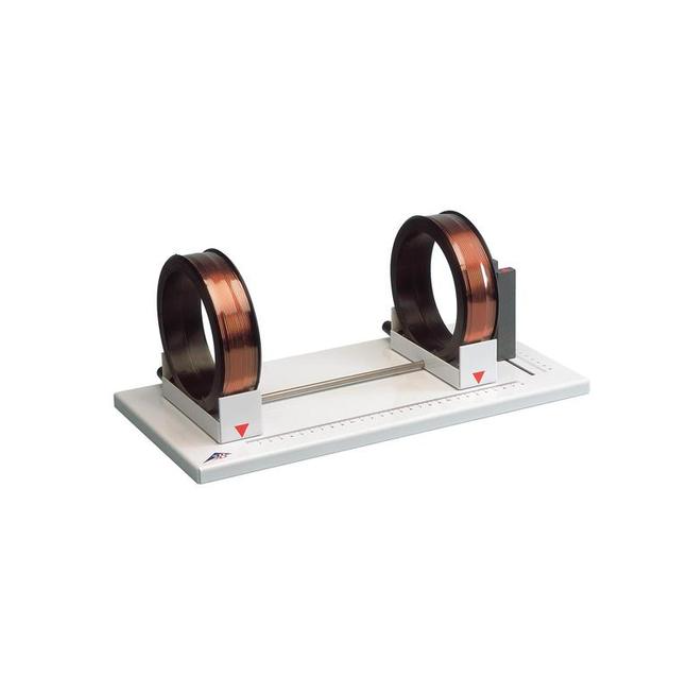

Pair of Helmholtz Coils on Mount. Plate
SKU
1003193
Manufacturer
3B Scientific
Unit of Measure
Each
UPC
674361780569
$587.00
Description
| Product Information: .. |
For generating a homogeneous magnetic field and for determining the Helmholtz configuration. The apparatus consists of a pair of coils arranged parallel to each other on a stable metal base plate, with a holder for a magnetic field probe for measuring the magnetic field. One coil and the holder are mounted so they can be repositioned. The coils can be connected in parallel or in series. The base plate has two printed scales for reading the coil spacing and the lateral displacement of the probe from the coil axis.
| Specifications: .. |
| Inductance: | L = 1.8 mH |
| Number of turns: | 100 each |
| Average coil diameter: | 125 mm |
| Coil width: | 33 mm |
| Terminals: | 4-mm safety sockets |
| Max permissible current: | 5 A |
| Max coil separation: | 240 mm |
| Max magnetic field: | approx. 70 G @ 6 cm separation |
| Scale division: | mm |
| Base plate: | 400 mm x 200 mm |
| Note: .. |
Additionally required: Magnetic field meter
