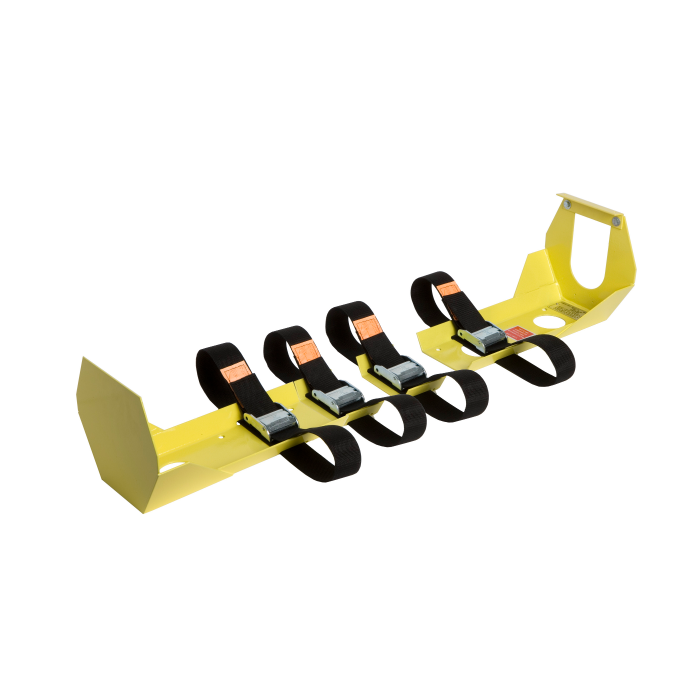

Multiversal bracket

Bracket consists of two separate ends (base and retainer) and two strap support brackets. Base and retainer ends can be spaced apart to accommodate “M”, “G”, and “H” cylinders. Four heavy-duty straps hold cylinder securely in place. Straps adjust to cylinder diameters of 6-3/4″ to 9-1/4″

Base and Retainer Dimensions: 14-3/8″L x 9″W x 8-5/8″H

Can be used alone or with QR-SA, QR-SAFD, and QR-SOFD-2 slide assemblies

Complies with SAE-J3043, AMD Standard 003 for oxygen tank retention systems, and GSA KKK specification when used as recommended. Complies with OSHA and insurance safety regulations.
