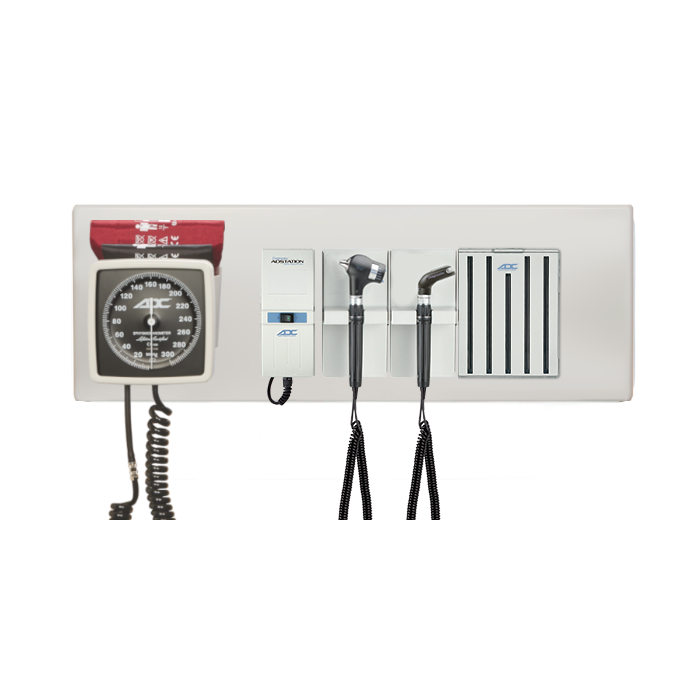

Adstation PMV OtoX/ThroatX Clock Aner/Spec Disp, WB

Depending on the configuration, your Adstation will arrive complete with a wall-mounted power supply and space for up to four EENT instruments. Each handle features a magnetic switch that activates power when the instrument is removed from the cradle and powers off when the handle is returned. (For added safety, the Adtronic auto-off feature will engage after two minutes if instrument is mis-cradled.) Handles are CNC machined from solid brass, then chrome plated in black with a ribbed surface for a comfortable grip. Adtronic electronic rheostatic light intensity control provides infinite continuous control. The bayonet instrument mount is compatible with all major brands of 3.5V instrument heads. Includes universal AC power supply with U.S. plug. (For international use, our Global Adapter Kit, item 5660TN-GAK, can be ordered separately. The kit includes three replacement plugs for the EU, UK, and Australia that connect to our universal power supply.) UL approved. Five-year warranty.

ADC’s Diagnostix 3.5V PMV Otoscope uses advanced optical technology and fiber-optic light transmission to create a panoramic, magnified view that features twice the field of view and 66% greater magnification (11 mm field of view, 5X magnification) compared to our standard otoscope. The result is a significantly improved view of the auditory canal and tympanic membrane. Other features include an adjustable focal depth and anti-theft locking, standard. The PMV Otoscope is suitable for throat illumination and pneumatic otoscopy (insufflator sold separately), and compatible with Welch Allyn specula. Choose from xenon or high-performance AdLED illumination. Two-year warranty on instrument heads, lifetime warranty on AdLED lamps.

ADC’s Diagnostix 3.5V Throat Illuminator uses PMMA light transmission (which is similar to fiberoptic) for unobstructed view of oral cavity. The tongue blade holder facilitates examination of the mouth and throat, while the eject button easily discards used blades. Includes an anti-theft locking feature, standard. Choose from xenon or high-performance AdLED illumination. Two-year warranty on instrument, lifetime warranty on AdLED lamp.

ADC’s Adstation specula dispenser is a hygienic and practical solution with space for five tubes of specula. The filling level of each specula tube is visible, and tubes are easy to refill. The dispenser holds up to five sizes and is compatible with Welch Allyn specula.

Wall board clock ADC’s Diagnostix 750 Clock Aneroid Sphyg features a large, easy-to-read, 6” luminescent dial for high visibility in virtually any light condition. Built with a 300mmHg no-pin stop movement, the sphyg withstands the heaviest use. Comes standard with two Adcuff inflation systems, one Adult and one Large Adult, which include nylon cuffs, Adflow bulbs and valves, and an eight-foot length (when extended) of coiled tubing. The included, integral cuff storage basket sits behind the gauge and allows 110° rotation for easy viewing.

We’ve updated our Adstation wallboard to a universal one-size design. Made of a compressed particle board, the new system uses a French cleat mount that’s fully compatible with competitive designs, allowing for a quick installation on existing hardware. New installations ship with all assembly hardware and an easy-to-use template to simplify mounting. Board measures 32” x 12” x 0.75”.
