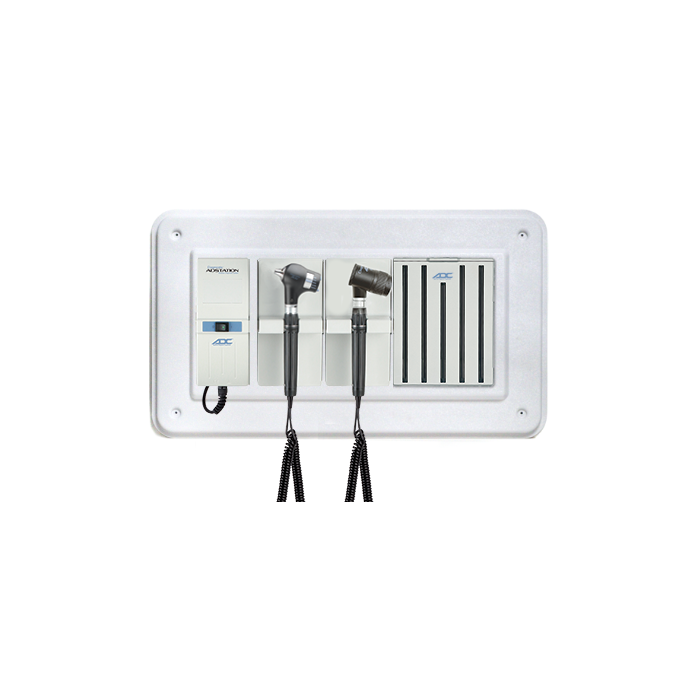

Adstation PMV OtoscopeX Derm, Spec Disp, WB

Depending on the configuration, your Adstation will arrive complete with a wall-mounted power supply and space for up to four EENT instruments. Each handle features a magnetic switch that activates power when the instrument is removed from the cradle and powers off when the handle is returned. (For added safety, the Adtronic auto-off feature will engage after two minutes if instrument is mis-cradled.) Handles are CNC machined from solid brass, then chrome plated in black with a ribbed surface for a comfortable grip. Adtronic electronic rheostatic light intensity control provides infinite continuous control. The bayonet instrument mount is compatible with all major brands of 3.5V instrument heads. Includes universal AC power supply with U.S. plug. (For international use, our Global Adapter Kit, item 5660TN-GAK, can be ordered separately. The kit includes three replacement plugs for the EU, UK, and Australia that connect to our universal power supply.) UL approved. Five-year warranty.

ADC’s Diagnostix 3.5V PMV Otoscope uses advanced optical technology and fiber-optic light transmission to create a panoramic, magnified view that features twice the field of view and 66% greater magnification (11 mm field of view, 5X magnification) compared to our standard otoscope. The result is a significantly improved view of the auditory canal and tympanic membrane. Other features include an adjustable focal depth and anti-theft locking, standard. The PMV Otoscope is suitable for throat illumination and pneumatic otoscopy (insufflator sold separately), and compatible with Welch Allyn specula. Choose from xenon or high-performance AdLED illumination. Two-year warranty on instrument heads, lifetime warranty on AdLED lamps.

ADC’s Diagnostix 3.5V Dermascope offers direct illumination with an optical-grade, 10X, focusable magnifying lens. The two interchangeable contact plates – one with a graduated scale (in mm), one without – can be disinfected. Includes a comfortable and soft eyepiece, for easy use with glasses, and an anti-theft locking feature, standard. Available with AdLED illumination only. Two-year warranty on instrument, lifetime warranty on AdLED lamp.

ADC’s Adstation specula dispenser is a hygienic and practical solution with space for five tubes of specula. The filling level of each specula tube is visible, and tubes are easy to refill. The dispenser holds up to five sizes and is compatible with Welch Allyn specula.

We’ve updated our Adstation wallboard to a universal one-size design. Made of a compressed particle board, the new system uses a French cleat mount that’s fully compatible with competitive designs, allowing for a quick installation on existing hardware. New installations ship with all assembly hardware and an easy-to-use template to simplify mounting. Board measures 32” x 12” x 0.75”.
